Product Name

EP03 ECG Smart Watch(This product is not a medical device product. It is only used as an auxiliary intelligent electronic product. The measurement data
and results are for reference only and are not used as medical data. All data comes from the internal laboratory. Please refer to
the actual use. The pages are all creative displays and are for reference only.)

Basic Parameters

Product Type

Smart Watch(ECG + TTP 24-hour ECG monitoring)

Features

ECG electrocardiogram, TTP 24-hour ECG monitoring, Measurement of blood pressure, Blood oxygen, Heart rate, Body temperature, etc.

Shell Material & Color

Shell: Zinc alloy + Vacuum plating(black, silver),
Bottom Shell: PC+ABS+Medical grade 316 stainless steel sheet,
Strap: TPU strap(black),

APP

H Band

APP Compatibility

Android 6.0 and above, iOS 9.0 and above

Hardware Parameters

Processor

GOODIX GR5515I0NDA_QFN56

Temperature Sensor

NTC

PPG Sensor

Osram SFH2201

ECG Sensor

Goodix GH3220

Accelerometer

STK8321 3-axis sensor(G-SENSOR)

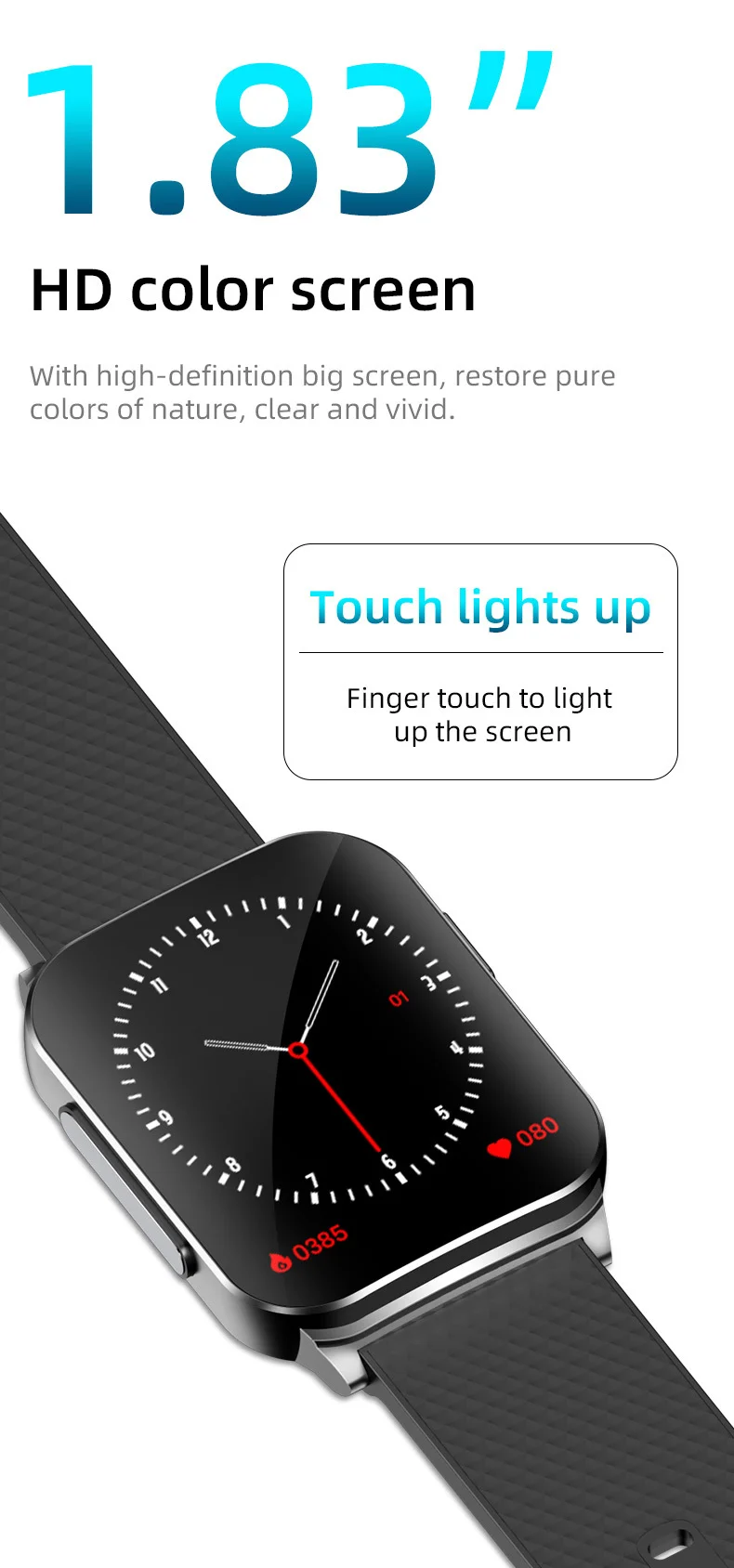

Display

Tempered glass+IPS HD TFT 1.83 inches 240*280

Battery Capacity

Pure cobalt lithium battery 240 mAh with 7-10 days of use, 30 days of standby

Touch

CST816D full screen touch

Vibration Motor

Mute vibration

BT Version

5.1 BLE(low power consumption)

Interface

Physical Buttons

1 Buttons

Charging Interface

Magnetic charging with short circuit protection

Charging Time

2-3 hours

Functions

Main Functions

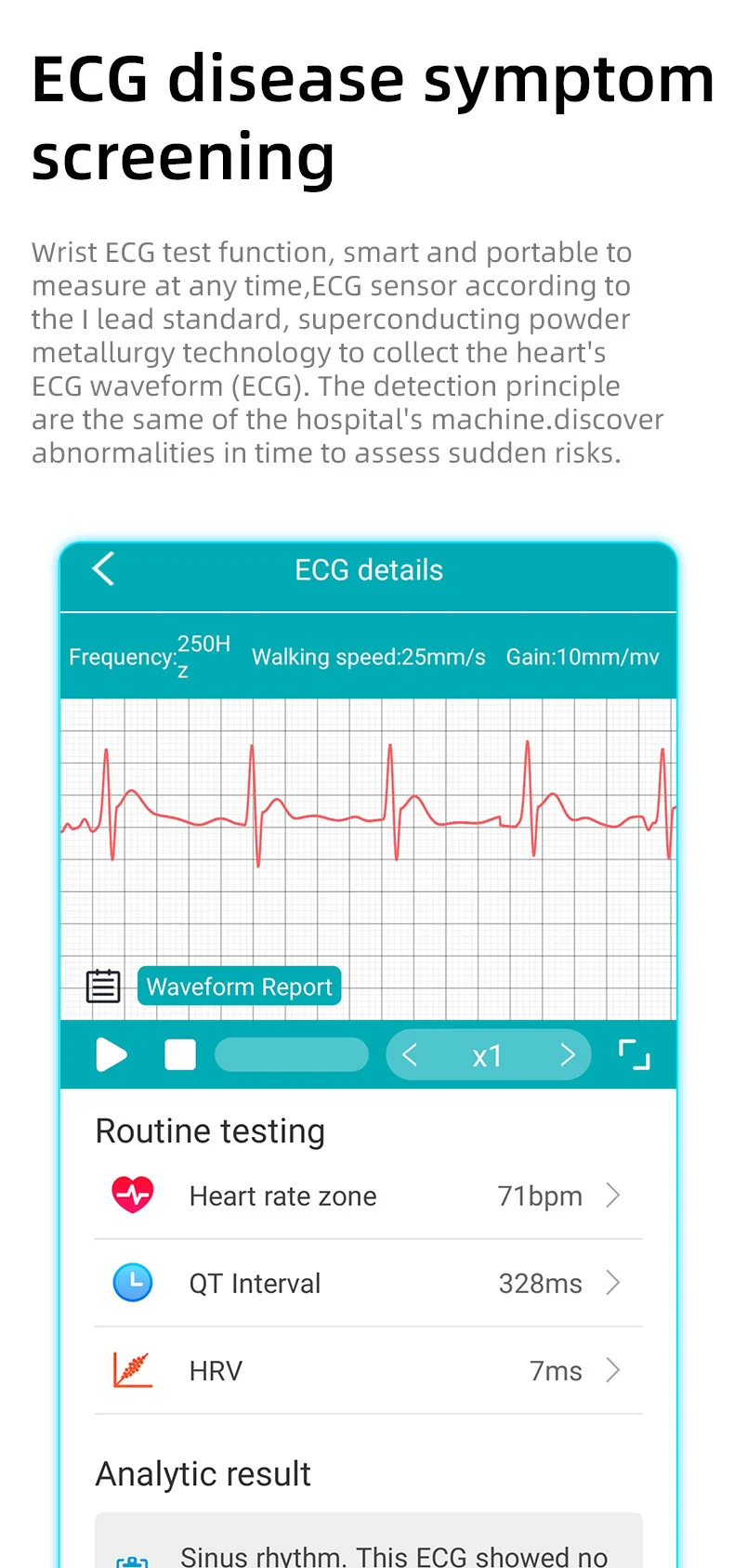

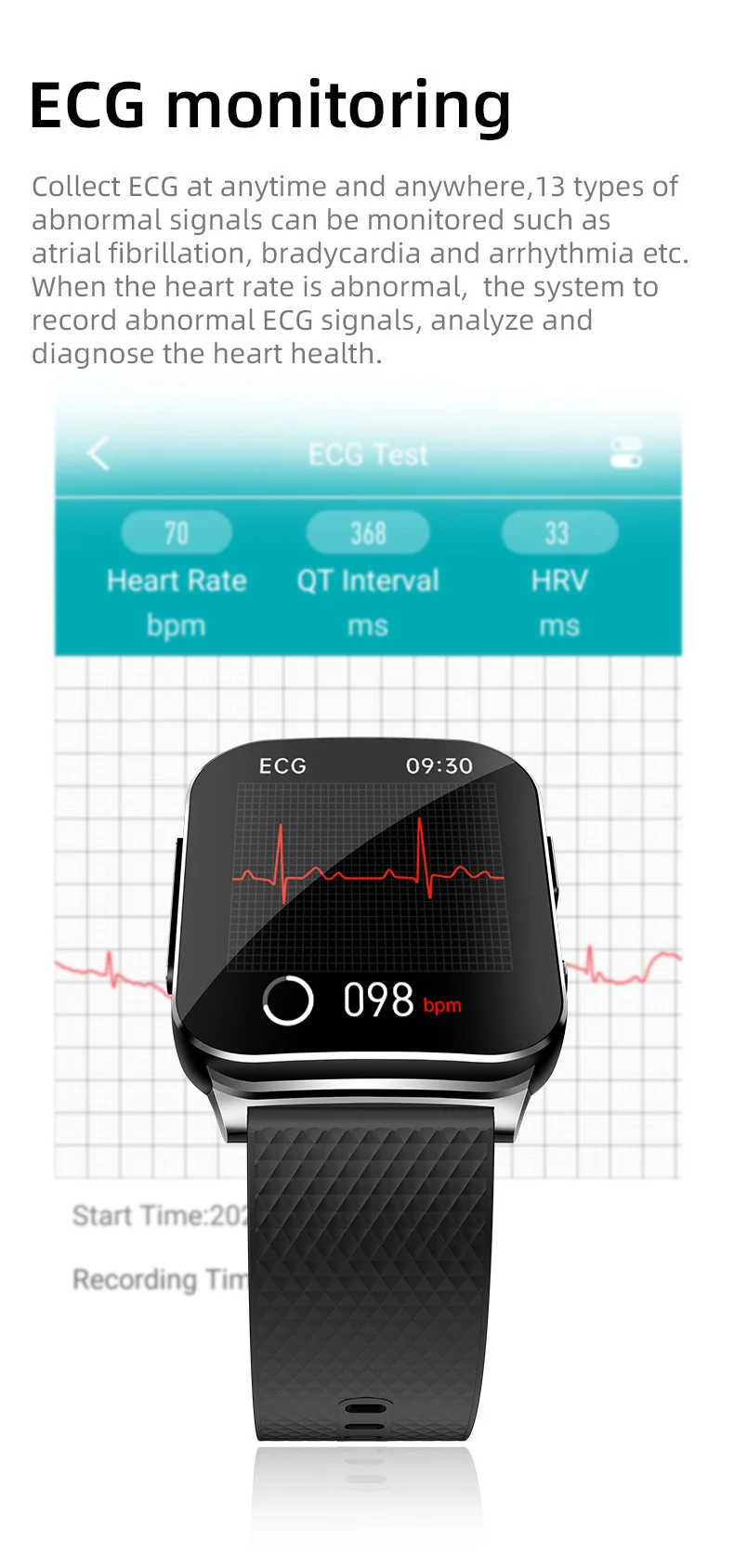

ECG electrocardiogram,

Independent and accurate blood oxygen measurement,

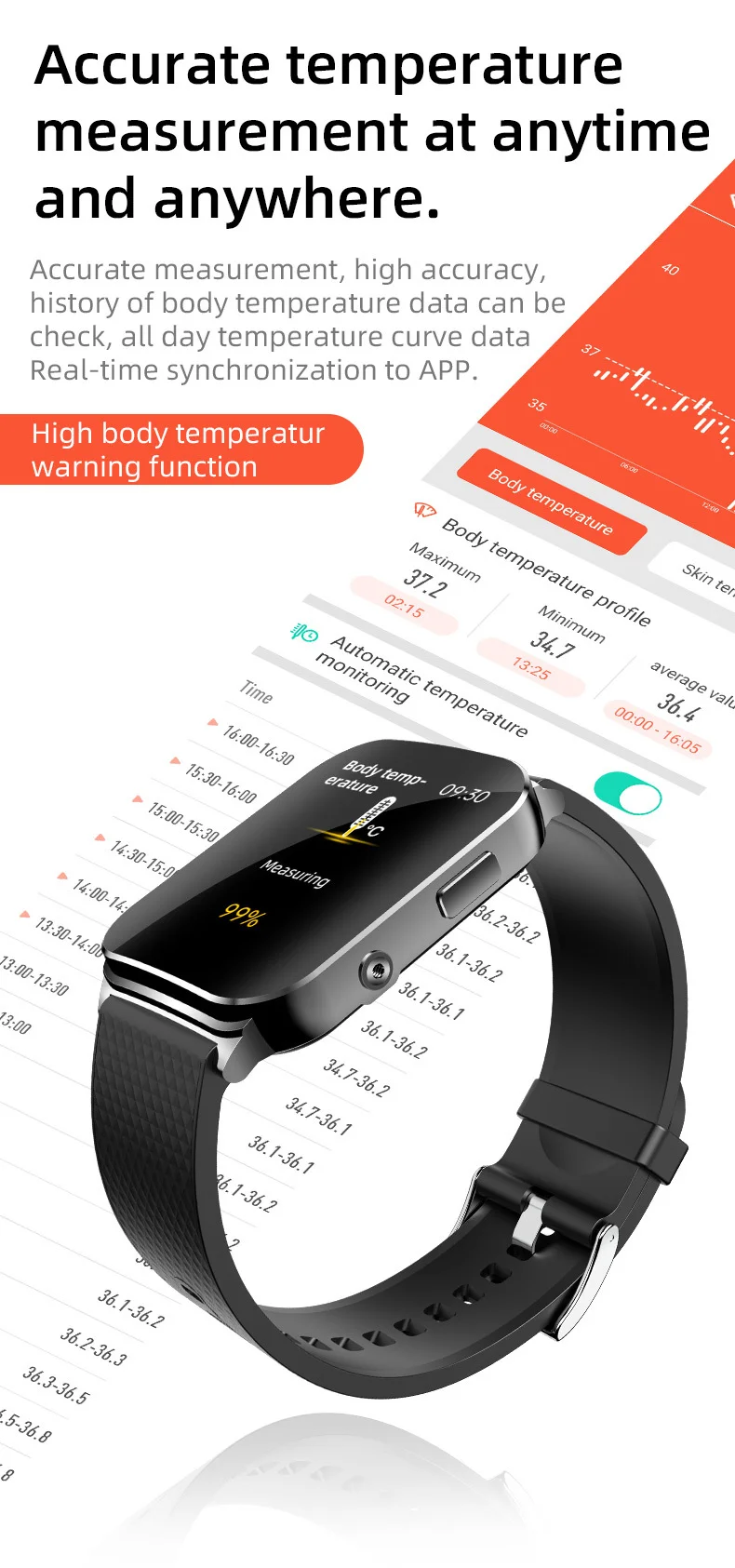

Precise body temperature measurement,

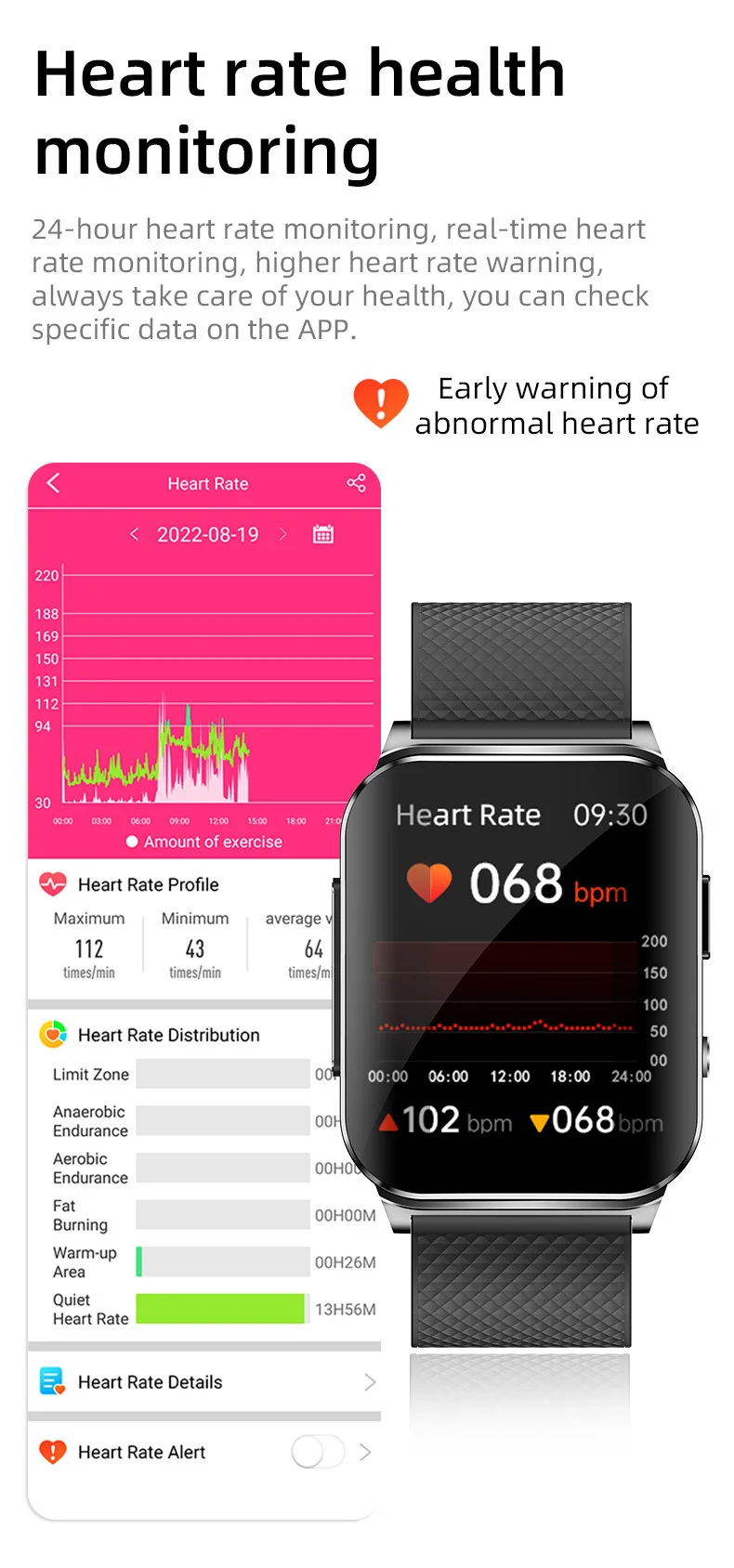

Real-time heart rate measurement,

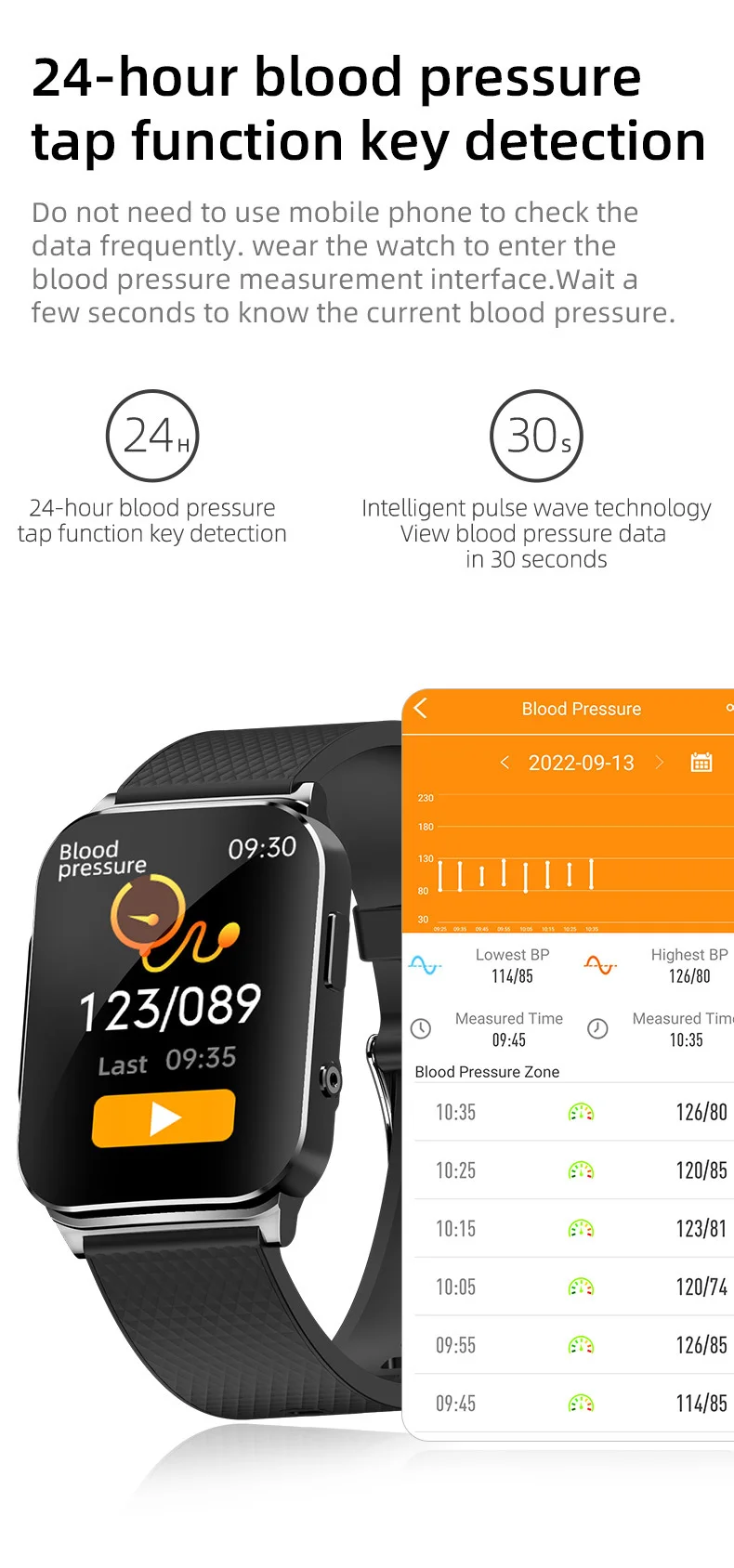

Photoelectric automatic blood pressure measurement,

TTP 24-hour ECG monitoring,

Respiratory rate measurement,

Heart rate alarm,

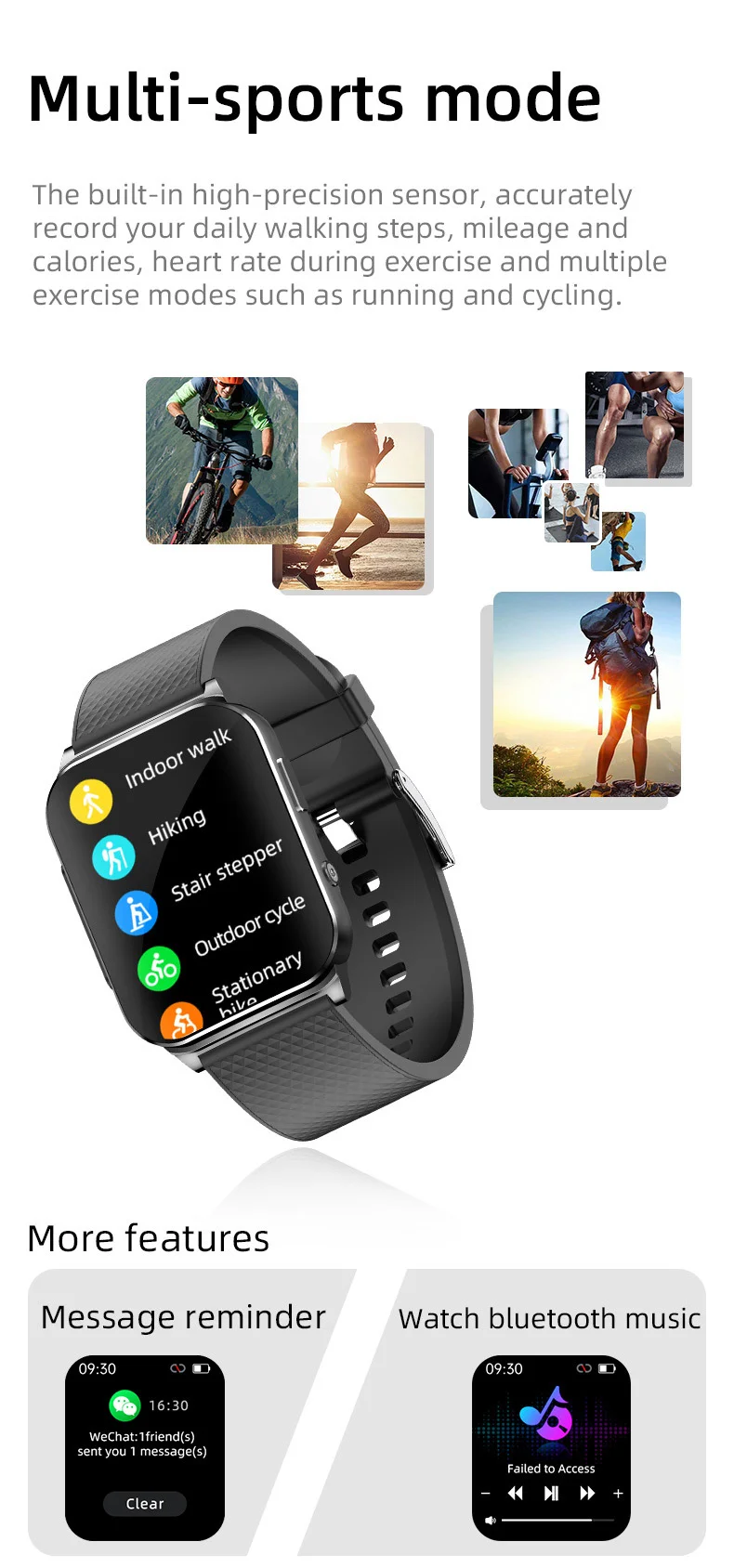

Multi-sport mode,

Exercise measurement(step/calorie/distance),

Sedentary reminder,

Raise wrist to brighten the screen,

Anti-lost reminder,

Message push,

Call reminder/reject,

OTA upgrade,

Music control,

7-day rolling storage of historical data,

Remote control camera,

WeChat Motion Sync,

Multiple dials,

Alarm clock,

Sleep monitoring,

Supported Languages

Watch language support: Chinese, English, Japanese, French, German, Italian, Spanish, Russian, Portuguese;
APP language support: Chinese Simplified, Chinese Traditional, English, Japanese, German, Russian, Italian, French, Spanish,
Portuguese, Vietnamese, Korean, Persian(Arabic).

Packing Details

Packing List

ECG electrocardiogram watch, Charging cable, EGC lead, Instruction manual, Reminder card, QC label, Packing box,

Dimension

Watch: 49*39*12mm
